Microsoft Dynamics AX 2012 Data Import Export Framework + Excel Add-in

Purpose: The purpose of this document is to illustrate how you could potentially leverage Excel Add-in in conjunction with Microsoft Dynamics AX 2012 Data Import Export Framework.

Challenge: Microsoft Dynamics AX 2012 Excel Add-in allows to interact with the business data using the power of Excel for “light-weight” data scenarios. For data import/export and integrations scenarios it is recommended to use Microsoft Dynamics AX 2012 Data Import Export Framework. Data Import Export Framework also does support native Excel data sources to populate Staging tables. Staging tables fields are typically based on extended data types which would make it technically possible to invoke Excel Add-in dynamic Lookups when populating Staging tables data to potentially reduce the number of data errors even before the data hits Staging tables.

Task: In this document I’ll describe how you could potentially populate Data Import Export Framework Staging tables using Excel Add-in. This will give you an interesting perspective at possible synergies between different approaches.

Walkthrough

As it was mentioned at the beginning Excel Add-in allows you to interact with Microsoft Dynamics AX 2012 business data. In particular dynamic Lookups and Filters in Excel Add-in could come very handy when populating Data Import Export Framework Staging tables to reduce the number of data errors during initial data entry

Excel Add-in

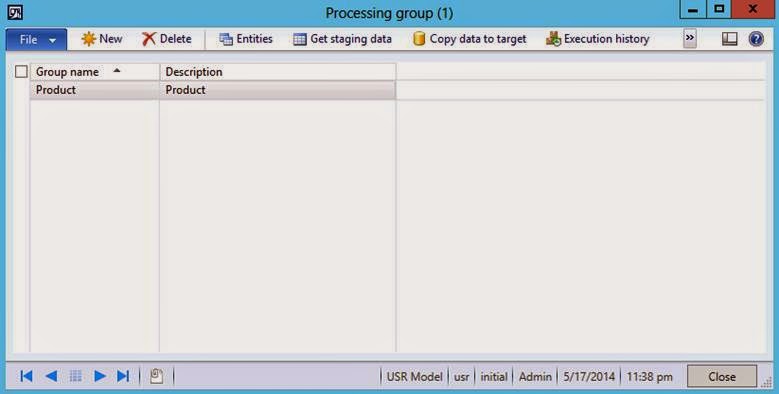

Let’s consider Products data import scenario using Microsoft Dynamics AX 2012 Data Import Export Framework. I’m going to use a standard Products template and first off I’ll create a processing group called “Product” as shown below

Processing group


I’ll then add Product entity to the processing group and specify Excel as Source data format

Select entities for processing group


As you can see I also supplied Excel file Product.xls, but in fact in this walkthrough I want to populate the contents of Staging table using Excel Add-in. For this purpose I’ll open up Excel and add DMFProductEntity using Add Tables function

Select Tables

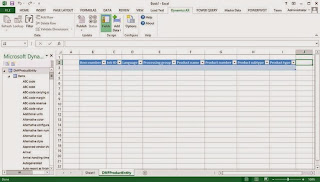

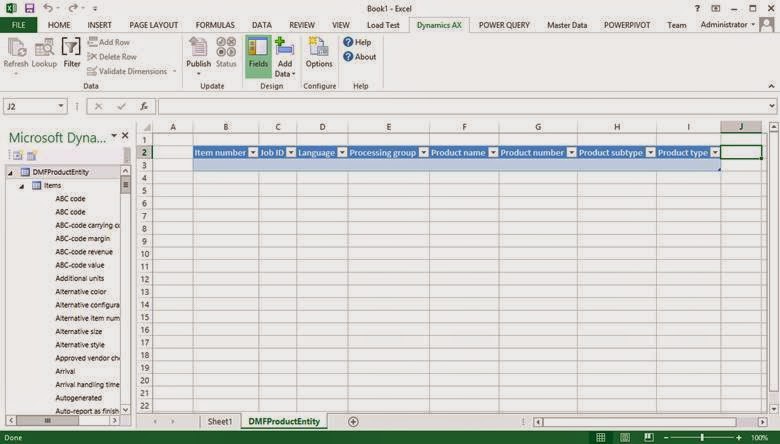

The number of mandatory fields from DMFProductEntity table gets added to Excel spreadsheet

Excel book


Then I’ll populate required values. At this point I could leverage dynamic Lookups provided by Excel Add-in for fields bound to appropriate extended data types and/or Filters to filter my dataset as needed

Data


I could also manage multiple data sources in the same spreadsheet if needed

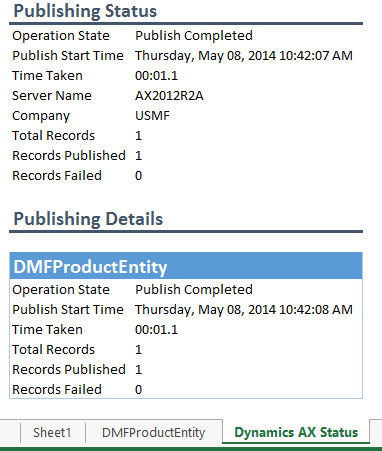

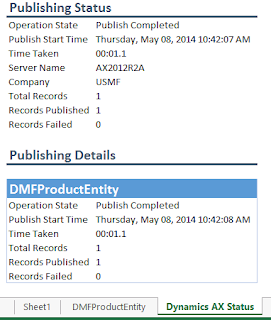

The result of the publishing is success as shown below

Publishing status


Great! So I could populate the contents of DMFProductEntity Staging table using Excel Add-in

DMFProductEntity table


But before I can complete data import process in Data Import Export Framework I also need to populate some records in framework tables, specifically DMFDefinitionGroupExecution table which has a reference to the entity and JobID for data operation

My next step will be to also add DMFDefinitionGroupExecution table to Excel Add-in and populate required data there

Select Tables


However when I try to add DMFDefinitionGroupExecution table to Excel Add-in I will see the following error

Microsoft Dynamics AX Office Addin – Error


This happens because of exception thrown in Microsoft.Dynamics.Framework.Metadata.AX assembly

Exception


Specifically EndRecId and StartRecId RecId reference fields in DMFDefinitionGroupExecution table are not handled properly in QueryDataSourceMetadataCollection.cs

Exception


The reason for this is because EndRecId and StartRecId fields are bound to a generic AX table (Common) in DMFDefinitionGroupExecution table relations

DMFDefinitionGroupExecution table - Relations


For example, this is how EndRecId field based Relation looks like

Relation


In this walkthrough to pass through (bypass) EndRecId and StartRecId fields and display DMFDefinitionGroupExecution table metadata in Excel Add-in I used Visual Studio debugger.

However in the real world I would likely have to write X++ wrapper Web Service or handle creation of appropriate DMFDefinitionGroupExecution table record directly in X++

Okay, now DMFDefinitionGroupExecution table metadata is available in Excel Add-in

Excel Add-in


And I can try populate the data in there. Please see the data below, plus I could explicitly specify a default Staging status = “Not started”

Data

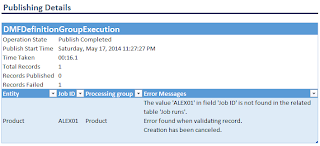

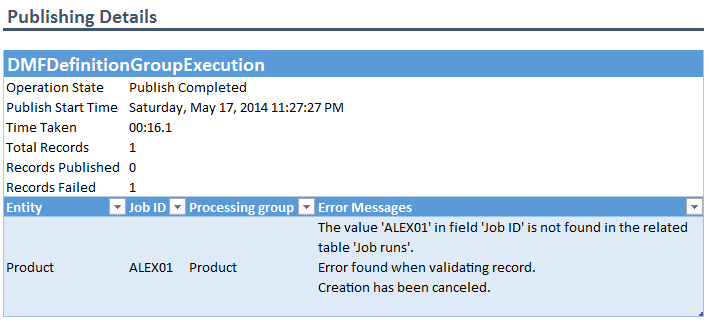

After trying to publish this data I’ll find out that I’ll also need to populate the data in DMFExecution table which is another framework table

Publishing Details

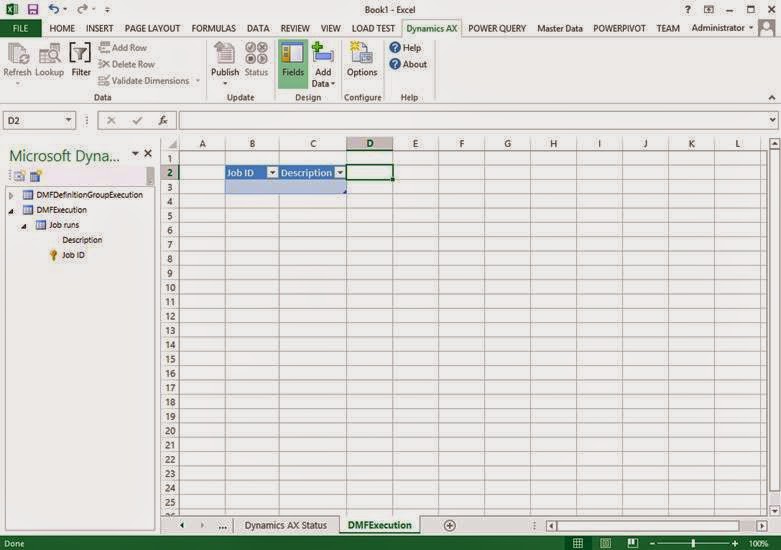

So I’ll go ahead and also add DMFExecution table to Excel Add-in

Select Tables


Excel book


For DMFExecution table record I’ll provide the following data

Data

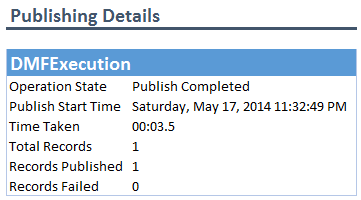

And successfully publish this data

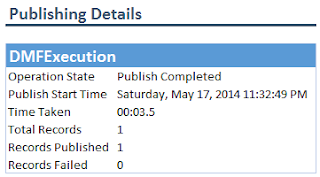

Publishing Details


After appropriate DMFExecution table record has been published I will come back to DMFDefinitionGroupExecution table record and republish it again

Publishing Details


At this time all supporting framework tables have been populate with appropriate data and we can switch to Microsoft Dynamics AX 2012 and review populated Staging data

Execution history


When I click on View staging data I can review the actual data sitting in Staging table

View staging data


Just to double check the data I can run Validation

Validate


And now I’ll be ready to Copy data to target

Copy data to target

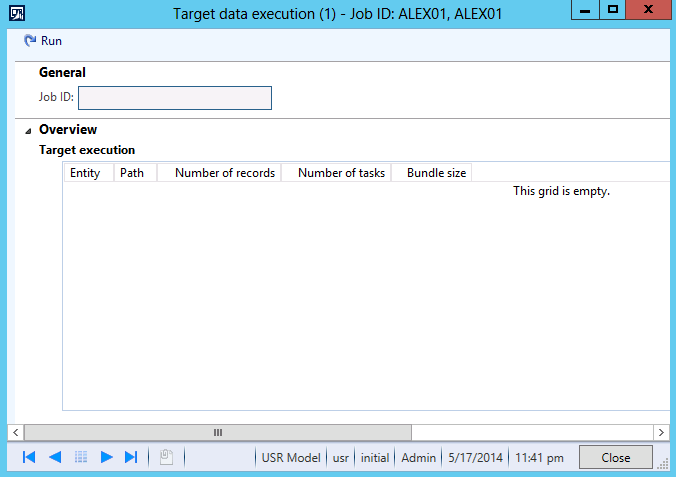

However I can’t see my job listed for execution on Target data execution screen

Target data execution


This is because I didn’t specify Staging status = Ended for DMFDefinitionGroupExecution record. Data Import Export Framework data import consists of 2 steps (which in fact can be automated into 1 step if needed) and the system keeps track of 2 statuses: Staging status and Target status. It is logical that you can only execute Copy data to target for jobs which successfully completed import of data into Staging table

Staging status = Ended


So I’ll need to update Staging status = Ended in my DMFDefinitionGroupExecution table record

Data


Execution history


So now my job will show up on Target data execution form as shown below

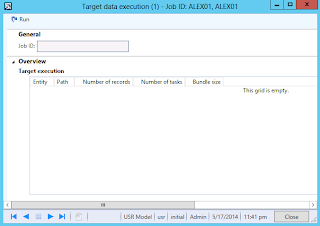

Target data execution


However Run button is disabled due to the fact that I didn’t specify file Path field and it is “” (empty)

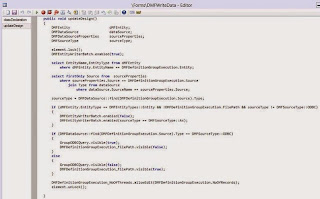

Code reference


After I do the final correction and specify file Path field with non-empty field I can complete data import

Data


Please note that I specified a fake non-empty value for Path field just to satisfy the data model constraint (Path field value must be specified), and in the case if data import is done completely using Data Import Export Framework Path field value will be populated based on Source path on Get staging data step

Publishing Details


Finally I can complete data import and move data to target

Target data execution


Copy data to target

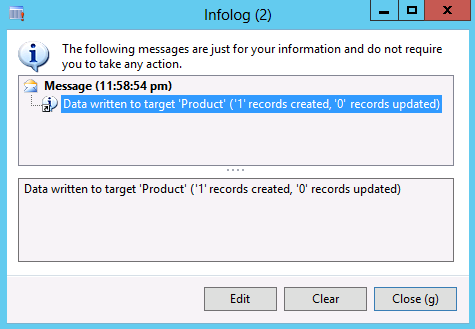

After successful data import the following infolog will be displayed

Infolog


And then you can review the results of data import in Microsoft Dynamics AX 2012. In my case Product will be created in Microsoft Dynamics AX 2012

Summary: This document describes how you could potentially leverage Excel Add-in in conjunction with Microsoft Dynamics AX 2012 Data Import Export Framework. Specifically my goal was to populate Data Import Export Framework Staging tables using Excel Add-in and better explain the mechanics of how Microsoft Dynamics AX 2012 Data Import Export Framework works. This also gives you an interesting perspective at possible synergies between different approaches for data import in Microsoft Dynamics AX 2012.

Tags: Microsoft Dynamics AX 2012, Data Import Export Framework, DIXF, Data Migration Framework, DMF, Excel Add-in, Lookup, Filter, Data Import, Data Migration.

Note: This document is intended for information purposes only, presented as it is with no warranties from the author. This document may be updated with more content to better outline the issues and describe the solutions.
