Dynamics AX 2012 DIXF – Issues and Solutions (The version of Microsoft Excel is not supported.-The ‘Microsoft.ACE.OLEDB.12.0’ provider is not registered on the local machine)

网络文摘 William 4335浏览 0评论
Dynamics AX 2012 DIXF – Issues and Solutions (The version of Microsoft Excel is not supported.-The 'Microsoft.ACE.OLEDB.12.0' provider is not registered on the local machine)

Purpose: The purpose of this document is to outline some issues you may encounter when using Dynamics AX 2012 Data Import Export Framework (DIXF) for import of data and provide solutions to resolve them.

Issue: ' The version of Microsoft Excel is not supported.-The 'Microsoft.ACE.OLEDB.12.0' provider is not registered on the local machine'.

Reason: When using DIXF Source data format of Type = "File" and File format = "Excel" this issue may occur in the situation when you have 32-bit version of Microsoft Office installed on 64-bit machine (OS). By default you may not have 64-bit Microsoft Excel Driver installed on the local machine which causes this issue even though you may have 32-bit Microsoft Excel Driver in place.

Dynamics AX Error


Solution: Please install 64-bit Microsoft Excel Driver on 64-bit machine (OS) with 'Microsoft Access Database Engine 2010 Redistributable' (AccessDatabaseEngine_x64.msi) by using "/passive" argument. Important: For your particular situation please research for any known compatibility issues when having both 32-bit and 64-bit drivers installed side by side

Let's review the situation in details

First off I'll be using Source data format of Type = Excel to import the data from Excel file

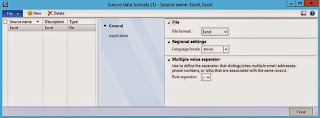

Source data format


Please note that Source data format Type = "File" and File format = "Excel"

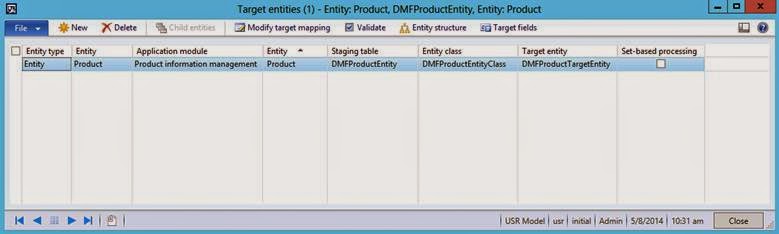

To begin with I'm going to use standard DIXF "Product" Target entity

Target entity


Then I'll introduce a processing group

Processing group


To compose initial Source file I'll use "Generate source file" Wizard

Generate source file Wizard (Welcome)


For the sake of simplicity I'll leave only mandatory fields marked

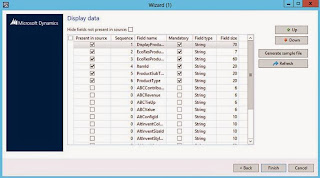

Generate source file Wizard (Display data)

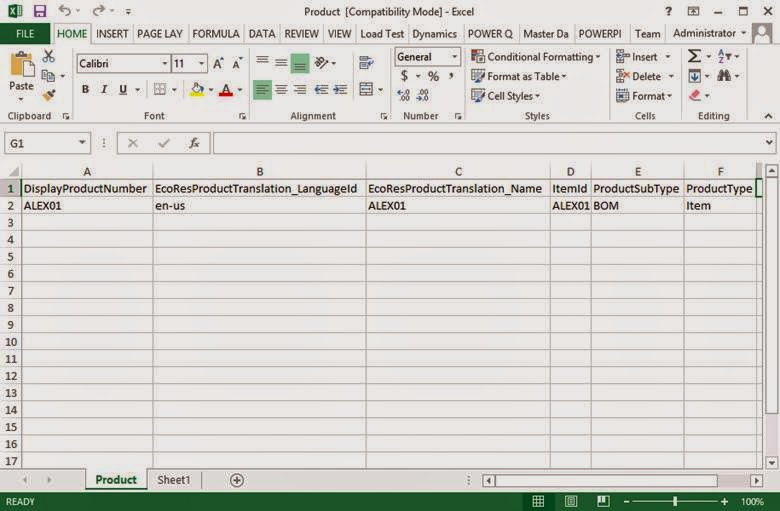

Generated Sample file will look like this

Sample file


Next I'll assign generated sample file to the "Product" entity in Processing group

Select entities for processing group


In case you don't specify Sheet lookup property you will be warned by the system as shown below

Logically we need to know where (what sheet) the data resides inside Excel file

Infolog


When this is set up you would logically try to automatically "Generate source mapping" based on contents of sample file

Generate Source Mapping - Error


This error will also show up in Event Viewer as shown below

Event Viewer - Error


First thing to check is ODBC Data Sources (64-bit)

And it seems like there's no 64-bit Microsoft Excel Driver (please note Platform = 'N/A') which causes this error

Data Sources (64-bit)

<![if !vml]><![endif]>
It also won't show up in the list of available/installed drivers

Create New Data Source (64-bit)


Here's the same list of 64-bit drivers on Drivers tab

ODBC Data Sources – 64-bit Drivers

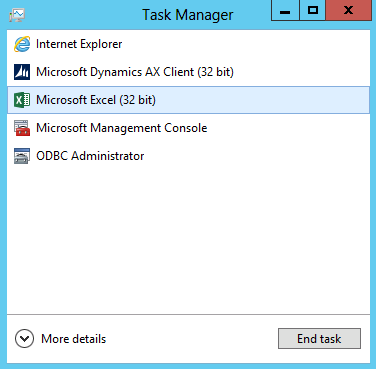

We can also check Microsoft Excel to see that it is in fact 32-bit

Task Manager


Now we'll switch over to 32-bit ODBC Data Sources

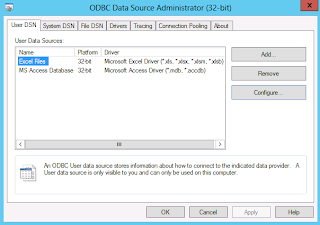

Data Sources (32-bit)


Please note that we do have 32-bit Microsoft Excel Driver installed

It is also present in the list of 32-bit drives as shown below

Create New Data Source (32-bit)


As well as you can see it explicitly on Drivers tab

ODBC Data Sources – 32-bit Drivers


Now the idea is to install 64-bit Microsoft Excel Driver on 64-bit machine (OS)

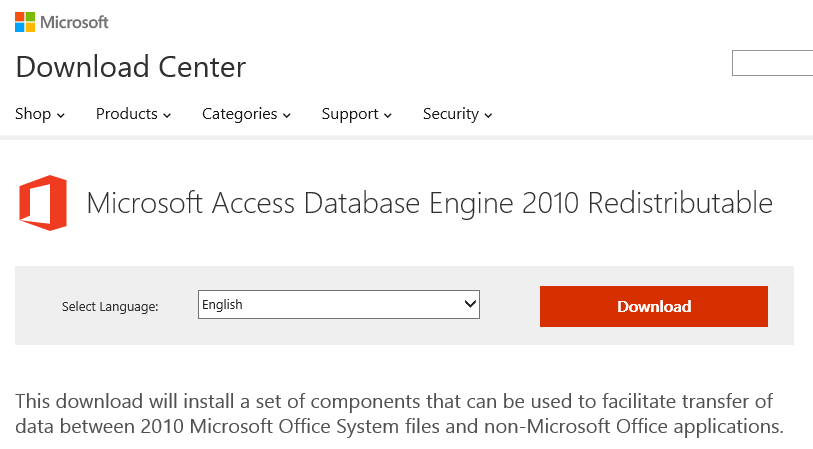

In order to do this you can download Microsoft Access Database Engine 2010 Redistributable from here: http://www.microsoft.com/en-us/download/details.aspx?id=13255

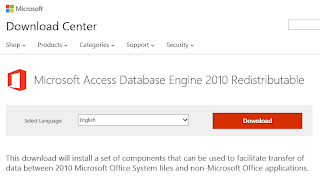

Microsoft Access Database Engine 2010 Redistributable


Please note that we'll be interested in installing AccessDatabaseEngine_x64.msi for 64-bit architecture

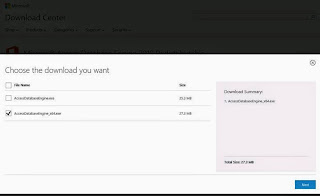

Choose the download you want


Finally for installation to be successful on 64-bit machine (OS) when you already have 32-bit driver, please use "/passive" switch in command prompt as shown below

Installation


It is also recommended to run command prompt (cmd) as Administrator

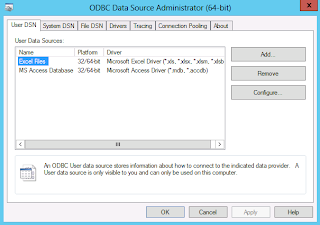

After installation finishes you will see 64-bit Microsoft Excel Driver showing up as on the screenshot below

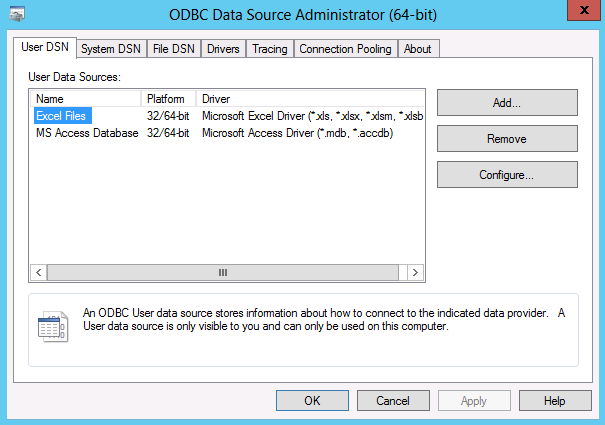

ODBC Data Sources (64-bit)

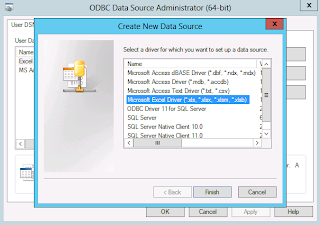

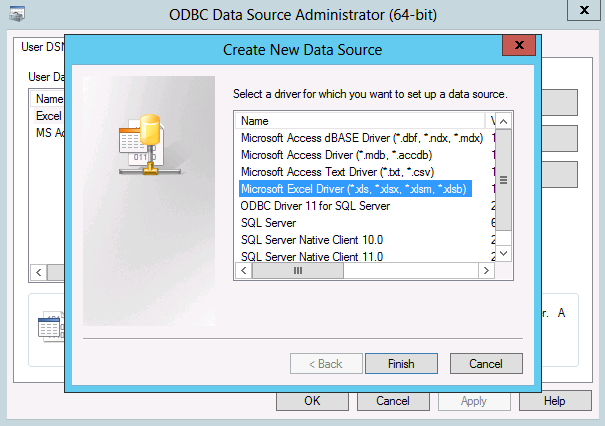

Now it will also be present in the list of available drivers

Create New Data Source (64-bit)


During Generation of Source mapping another issue you may face with is "Query validation failed-Object reference not set to an instance of an object."

Dynamics AX - Error


This typically occurs when you forget to put "$" sign at the end of Excel Sheet. Please note that the proper syntax to define Sheet lookup is "XYZ$". For example, in my case Sheet lookup = "Product$" which means that Product data resides in Excel sheet named "Product". Resulting query will look like the following: "select * from [Product$]"

Here's how it looks like on Select entities for processing group form

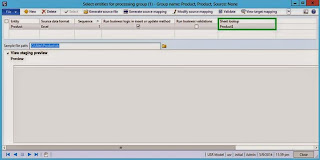

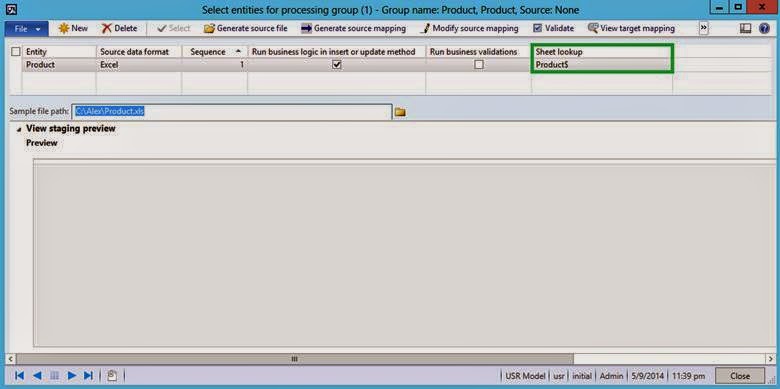

Select entities for processing group – Sheet lookup


After all issues were sorted out we can successfully complete Source mapping generation

Success


And verify it in Visual Designer

Visual Designer


Finally we can add some data into our Excel file

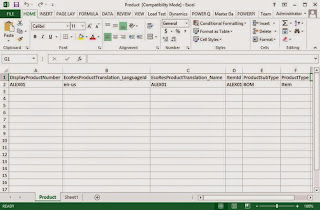

Excel file


And verify that we can successfully preview the contents of Excel file on Select entities for processing group form

Select entities for processing group – Preview file contents


Then you know what to do next to complete the import process J

Tags: Dynamics ERP, Dynamics AX 2012, Excel, DIXF, Dynamics AX 2012 Data Import Export Framework, Data Import, Data Conversion, Data Migration, Issue, Problem, Solution, Resolution.

Note: This document is intended for information purposes only, presented as it is with no warranties from the author. This document may be updated with more content to better outline the issues and describe the solutions.

Author: Alex Anikiev, PhD, MCP

Call to action: If you liked this article please take a moment to share your experiences and interesting scenarios you came across in comments. This info will definitely help me to pick the right topic to highlight in my future blogs.
